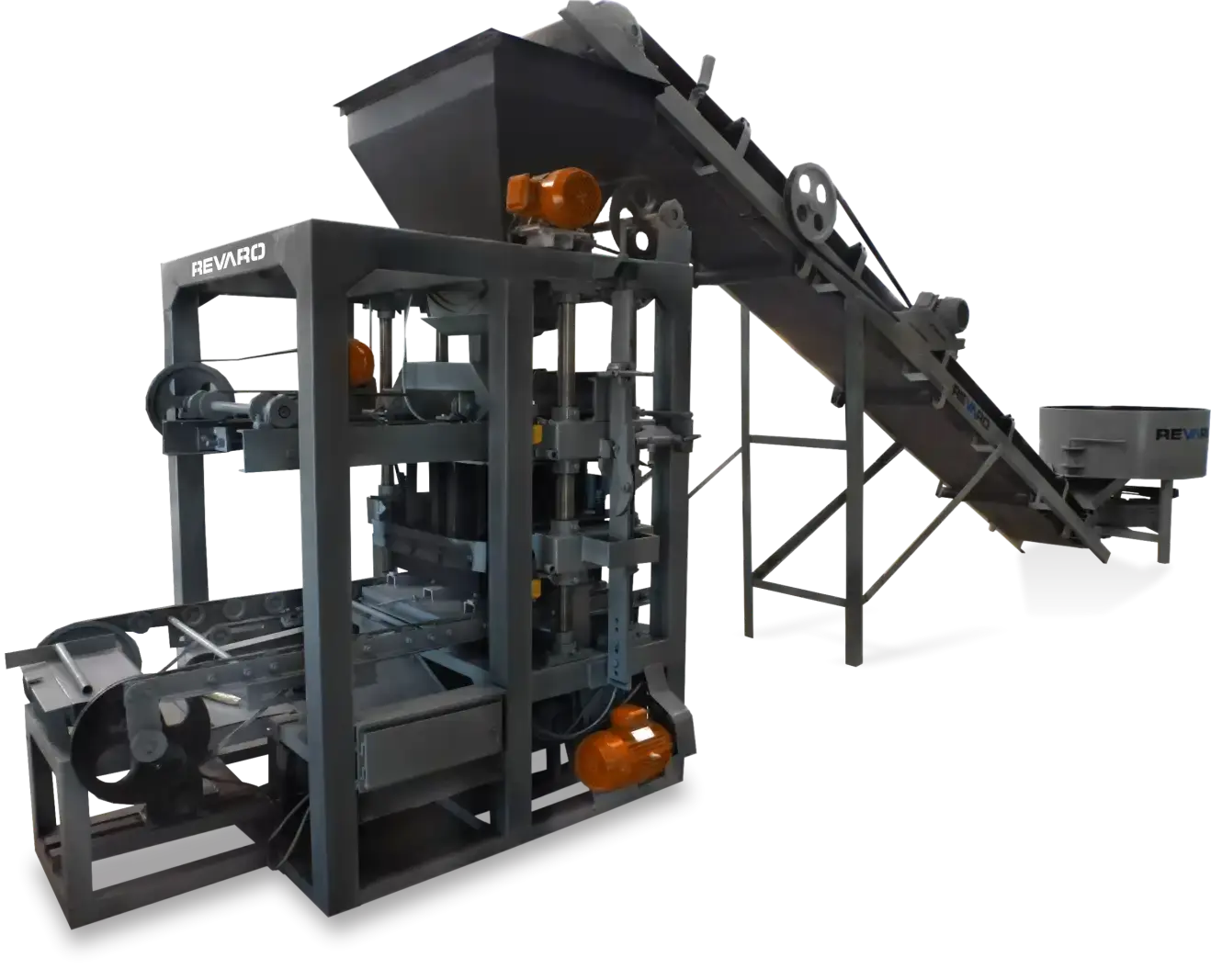

Semi-automatic Static Brick, Block and Paver Machine
Pallet Size
880 x 550mm
- This robust and well-constructed block making machine features auto-mould feed and wet block conveyor. The dual-electric vibration motor insures best compaction for the production of high quality bricks, blocks and pavers that are SABS compliant. Aggregate supplied by conveyor.
- Comes standard with a 350L pan mixer, but is upgradable to 500L with skip for higher output.?
- 2 or 3 bin batchers available; ensuring easy mixing of aggregates?
- Trolley: Transport up to 4 wet-block pallets stacker: Stack up to 4 wet-block pallets
- The moulds are easily inter-changeable allowing the production of a wide selection of products.
- Comes standard with one maxi, stock or block? mould of your choice. Additional moulds at extra cost
Dimensions
| Specification | Value |
|---|---|
| Pallet Size | 880 x 550mm |
| Overall Dimensions | 2150 x 1720 x 2550mm |
Machine Specs
| Specification | Value |
|---|---|
| Machine Type | Semi-Automatic |
| Recommended Batcher | 2/3 Bin |
| Recommended Mixer | 350L |
| Conveyor | yes |
| Stacker | yes |
| Pallet Supply | yes |
| Installed Capacity | 12.35kW |
| Machine Weight | 1900kg |
| Cycle Time | 60-60s |
PRODUCTION SPECIFICATIONS FOR RS5-2.5 (DROPS)
| Brick | Dimensions | Per Drop | Per Hour | Per Day |
|---|---|---|---|---|
| 4 inch Hollow Block | 390 x 90 x 190 | 7 | 840 | 7560 |
| 6 inch Hollow Block | 390 x 140 x 190 | 5 | 600 | 5400 |
| 9 inch Hollow Block | 390 x 190 x 190 | 4 | 480 | 4320 |
| Interlocking Paver | 200 x 100 x 60/80 | 14 | 1680 | 15120 |
| Bevel Paver | 200 x 100 x 50 | 14 | 1680 | 15120 |
| Coastal Maxi Brick | 220 x 90 x 115 | 16 | 1920 | 17280 |
| Inland Maxi Brick | 290 x 90 x 140 | 10 | 1200 | 10800 |
| Stock Brick | 210 x 70 x 100 | 20 | 2400 | 21600 |
