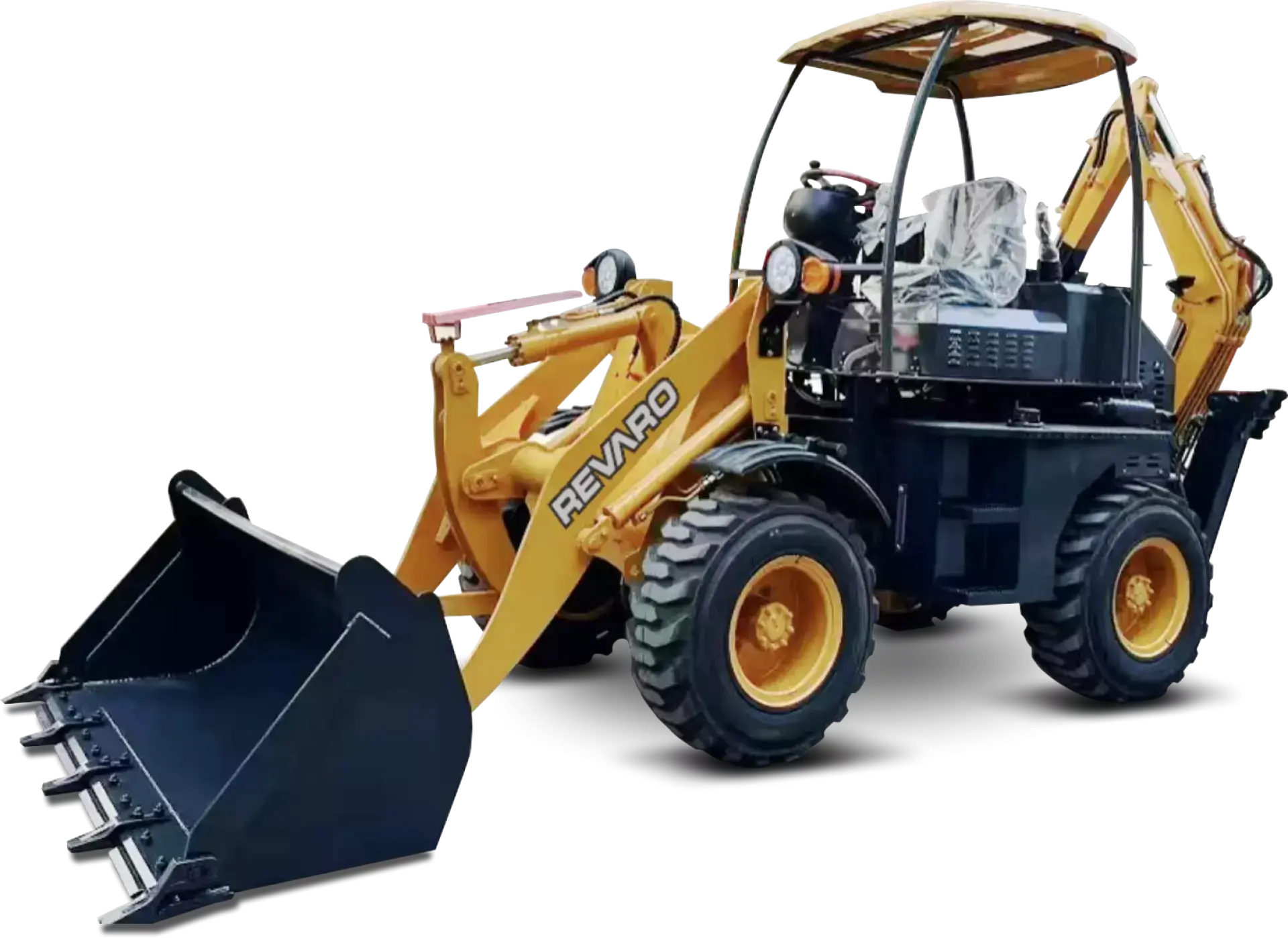

Mini Back-hoe Loaders (TLB's)
Engine power
49.62HP
Operating weight
2800kg
The Revaro HD50M Mini TLB is a compact, high-performance machine designed for versatility in construction, agriculture, and landscaping. Ideal for excavation, trenching, loading, and material handling, it delivers exceptional maneuverability
and power.
Its rugged build ensures durability, while
the user-friendly controls enhance
efficiency. Perfect for tight spaces, the
HD50M combines reliability, productivity,
and ease of operation, making it the
ultimate solution for demanding job sites.
General
| Specification | Value |
|---|---|
| Engine make | Yunnei YN25GB |
| Drive | 4WD |
| Tyre size | 12-16.5 |
| Engine power | 49.62HP |
| Operating weight | 2800kg |
Loader
| Specification | Value |
|---|---|
| Dumping height | 2100mm |
| Max lifting height | 3100mm |
| Max reach at full height (bucket dumped) | 1000mm |
| Max digging depth | 100mm |
| Rollback at ground | 45° |
| Dump angle | 45° |
| Bucket/loader-arm breakout force | 42kN |
| Payload | 1000kg |
| Loader bucket capacity | 0.65m³ |
Backhoe
| Specification | Value |
|---|---|
| Max digging depth | 1600mm |
| Reach at ground to rearwheel/slew centers | 3000mm |
| Reach at full height to slew center | 1450mm |
| Side reach to center line | 2700mm |
| Max working height / load-over height | 2000mm |
| King post travel | No |
| Boom Slew Angle | 180° |
| Bucket / dipper tearout force | 28N |
| Excavator bucket capacity | 0.05m³ |
Dimensions
| Specification | Value |
|---|---|
| Overall length (transport / travel mode) | 4950mm |
| Wheel base | 1780mm |
| Rear wheel to slew center | 550mm |
| Min / slew ground clearance | 240mm |
| Height to top of cab / overall height | 2550mm |
| Travel width (rear / front) | 1410mm |
| Bucket width | 1680mm |
