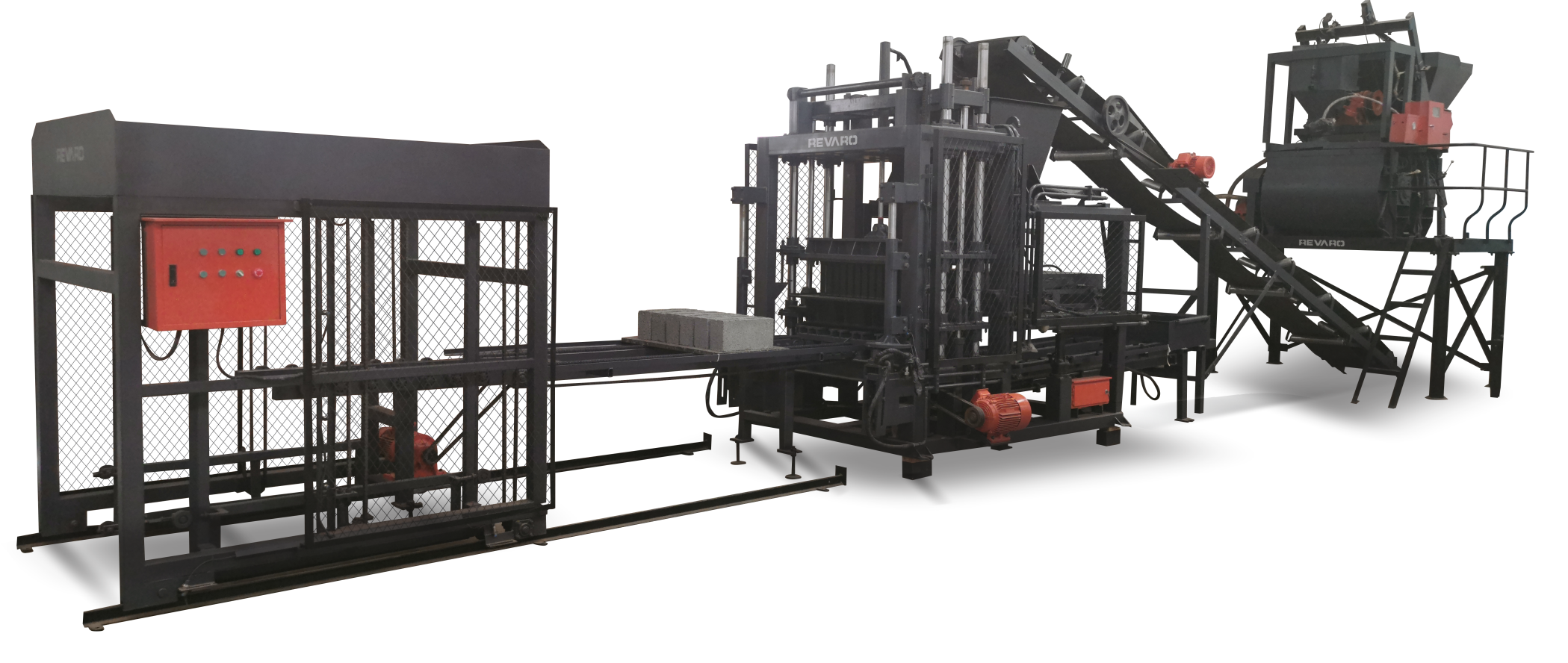

Automatic brick and block making machine
Pallet Size
1020 x 570 x 30mm
Machine type
Hydraulic/Automatic
RE6-22 Semi-automatic brick and block making machine offers the following
- ISO & CE Certified - Quality guaranteed
- User friendly automatic touch screen control
- High frequency vibration - optimal quality
- Exact aggregate mixing by batcher
- Optimal mixing of aggregates, cement & water
- Automatic pallet feeding
- Automatic aggregate feeding
- Automatic wet block conveyor
- Automatic wet block stacker
- We offer delivery, installation and training.
The RE6-22 available with facemix for face coloured bevel and interlocking pavers.
Dimensions
| Specification | Value |
|---|---|
| Pallet Size | 1020 x 570 x 30mm |
Machine Specs
| Specification | Value |
|---|---|
| Machine type | Hydraulic/Automatic |
| Recommended Batcher | 2/3 Bin |
| Recommended Mixer | 500L / 750L |
| Conveyor | yes |
| Stacker | yes |
| Pallet Supply | yes |
| Machine Weight | 4300kg |
| Overall Dimension | 7130 x 2500 x 2810mm |
| Cycle Time | 15 - 25s |
| Installed Capacity | 28kW |
PRODUCTION SPECIFICATIONS FOR RE6-22 (DROPS)
| Brick | Dimensions | Per Drop | Per Hour | Per Day |
|---|---|---|---|---|
| 4 inch Hollow Block | 390 x 90 x 190 | 9 | 1620 | 14580 |
| 6 inch Hollow Block | 390 x 140 x 190 | 6 | 1080 | 9720 |
| 9 inch Hollow Block | 390 x 190 x 190 | 4 | 720 | 6480 |
| Interlocking Paver | 200 x 100 x 60/80 | 16 | 3840 | 34560 |
| Bevel Paver | 200 x 100 x 50 | 16 | 3840 | 34560 |
| Coastal Maxi Brick | 220 x 90 x 115 | 18 | 4320 | 38880 |
| Inland Maxi Brick | 290 x 90 x 140 | 15 | 3600 | 32400 |
| Stock Brick | 210 x 70 x 100 | 22 | 5280 | 47520 |
