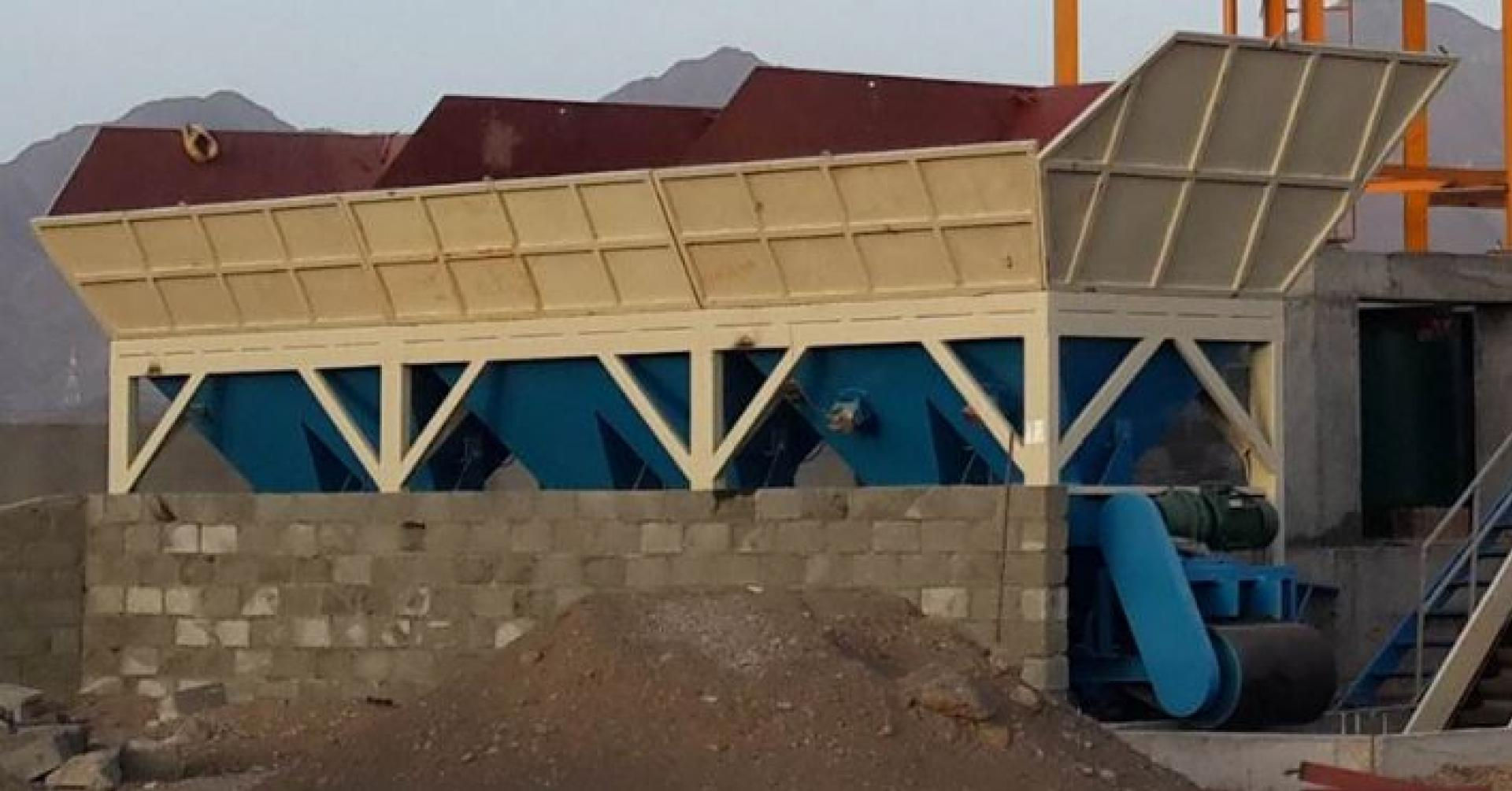

3 Bin Batcher

Bins
3

Overall dimensions
900x2110x4100mm


Our Batchers are excellent value for money and are slowly replacing the labour and maintenance intensive boom scrapers, delivering a short ROI (return on investment) to our customers. Our Batchers weigh and batch up to four different aggregates automatically due to the fact that they are PLC (Programmable Logic Controller) controlled. The Batchers eliminate the continuous maintenance required by boom scrapers.

Standard models have 4mm steel sheets on all hoppers and upgrades to 6mm are available. 4mm liner plates are also available on request. The RB1600, RB2400 and RB3200 are available in two, three and four storage hopper configurations. Up to five storage hopper configurations are available on certain models.

Machine Specs
Specification
Value
Bins
3
Weighing Hopper
2.4m³
Productivity
144m³/h
Precision
±2%
Max Weighing
8 000kg
Measurement
Accumulative Electronic Load Cells
Mode
Pneumatic or Electro-motion Conveyor Belt
Skip Feeding
Electro-motion Conveyor Belt
Storage Hopper
3 x 10m³
Power
5.5kW
Weight
9500kg

Dimensions
Specification
Value
Loading Height
3900mm
Overall dimensions
900x2110x4100mm
