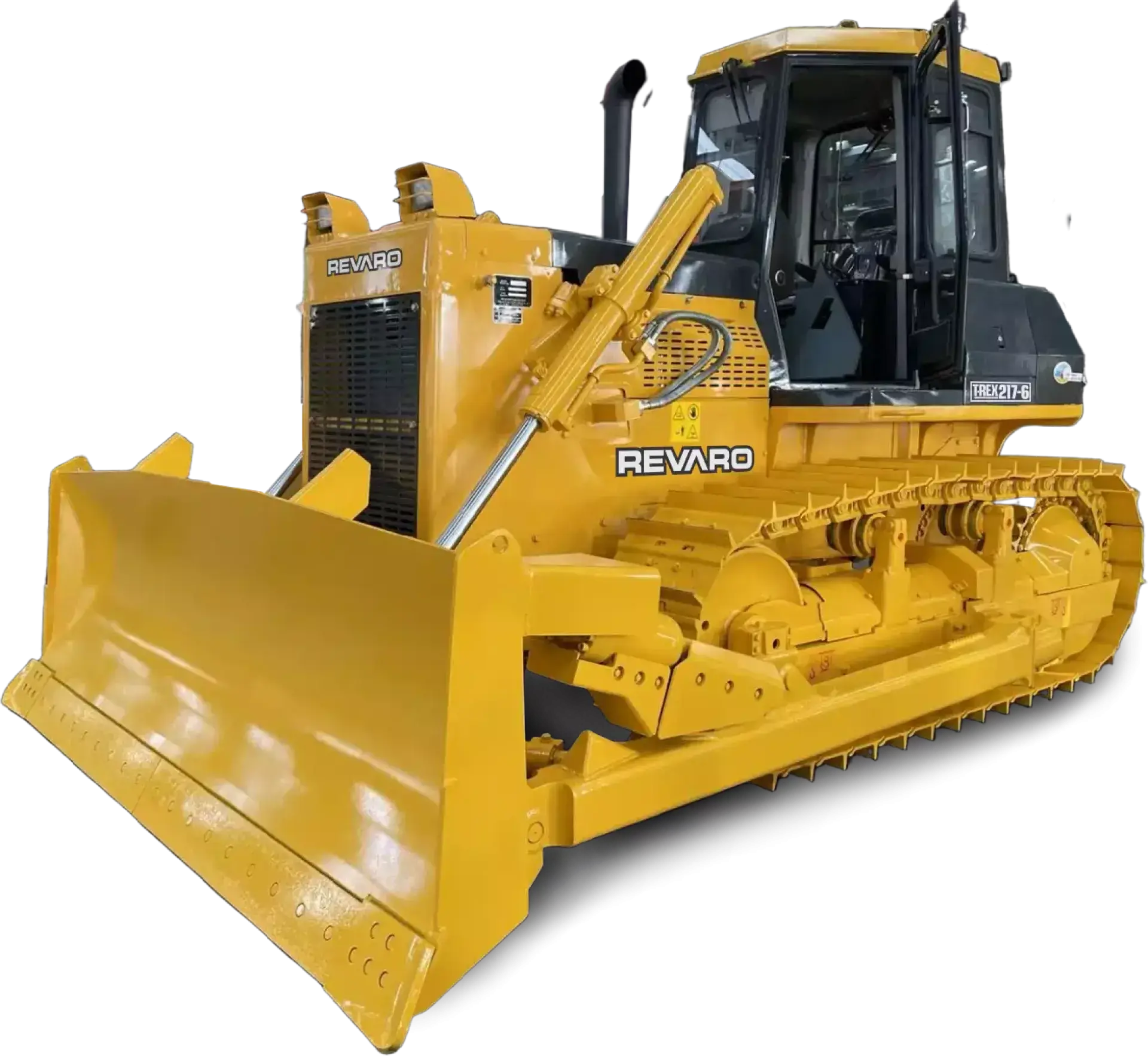

16.4 Ton Standard Bulldozer
Weight
16400kg
Power
131kW / 1850r/min
T-rex217-6 mechanical transmission series bulldozer adopts mechanical transmission, featuring high technology content, advanced and reasonable design, strong power and high production efficiency.
• It is applicable to the transportation, excavation, backfilling of earthwork and other bulk materials on roads, railways, mines, airports and other surfaces. It is an indispensable engineering machinery for construction of national defense projects, mine construction, urban and rural roads and water conservancy construction.
General Specs
| Specification | Value |
|---|---|
| Dimension | 4 990×3 440×3 110mm |
| Weight | 16400kg |
| Engine model | WP10G178E355 / WD10G178E25 |
| Power | 131kW / 1850r/min |
| Ground specific pressure | 0.066MPa |
| Min ground clearance | 405mm |
| Gradeability | 30° |
| No. of track shoes (each side) | 37 |
| Width of Track shoe | 510mm |
| Track Gauge | 1 880mm |
| pitch | 203.2mm |
| No of carrier rollers (each side) | 2 |
| No. of Track roller (each side) | 6 |
| Max traction force | 144kN |
| Blade type | Straight-Tilt Blade |
| Blade Capacity | Straight-Tilt Blade 4.5m³ |
| Blade lift height | 1 095mm |
| Blade depth | 540mm |
| Max inclination of blade | 400mm |
| Coolant capacity | 79L |
| Fuel tank capacity | 300L |
| Engine oil capacity | 19L |
| Min fuel consumption | 12-15 / 16-20L/H |
| Grounding contact length | 2 430mm |
| Blade Length x height | 3440 x 1150mm |
| Forward Speed - F1, F2, F3 | 3.29, 5.82, 9.63km/h |
| Reverse Speed - R1, R2, R3 | 4.28, 7.59, 12.53km/h |
